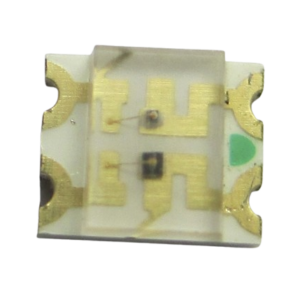

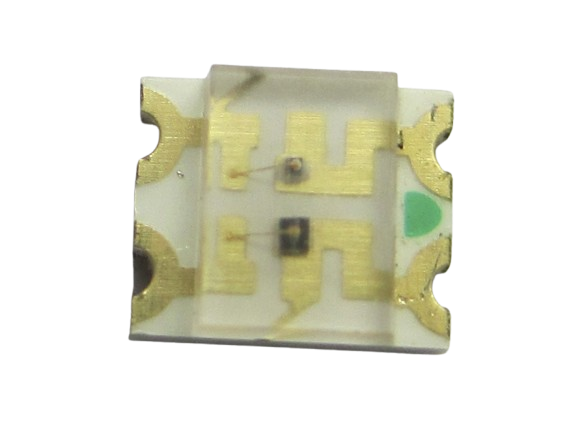

PL00182-WCRG1817

Bi-Color SMD LED

PL00182-WCRG1817

LED RED/GREEN CLEAR CHIP SMD

Color: Red, Yellow-Green
Configuration: Standard
Current: 20mA
Height (Max): 1.10mm
Lens Color: Colorless
Lens Style: Rectangle with Flat Top
Lens Transparency: Clear
Millicandela Rating: 115mcd Red, 45mcd Yellow-Green
Mounting Type: Surface Mount
Package / Case: 1210 (3225 Metric)
Part Status: Active
Size / Dimension: 3.20mm L x 2.70mm W
Type: LED
Viewing Angle: 120?
Voltage - Forward (Vf) (Typ): 2.1V Red, 2.2V Yellow-Green
Wavelength - Dominent: 631nm Red, 573nm Yellow-Green
Download Datasheet: Download PDF

SKU: PL00182-WCRG1817 Category: Bi-Color SMD LED
